Micro Implant-1

Orthodontic Product | Micro Implant

Garnet Dentech is the world's first microimplant manufacturer. Through accumulated know-how and successful cases since 2001, along with intensive research and study, we provide the finest microimplants in orthodontics based on the latest technology.

Micro Implant-1 Micro Implant
garnetdentech orthodontic
Micro Implant-1 Micro Implant
Micro Implant-1 Micro Implant specification

Orthodontic Microimplant System

Innovative microimplants developed and supported by the pioneers and best experts in orthodontics.

Microimplants can be applied to various clinical applications :

• Six anterior en masse retraction
• Molar intrusion, extrusion, distalization, protraction & uprighting
• Whole maxillary and mandibular dentition retraction
• Midline correction
• Anterior intrusion, extrusion and torque control
• Intermaxillary elastics
• Intermaxillary fixation during orthognathic surgery
• Combination use of Transpalatal Arch
• Perfect for lingual orthodontic treatment
• Various direct and indirect skeletal anchorage

Nomenclature of AbsoAncho® Microimplant codes

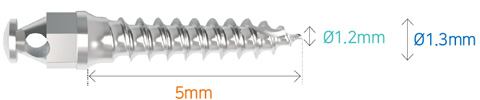

Tapered type - SH1312-05

Tapered type - SH1312-05 5mm / Ø1.2mm / Ø1.3mm

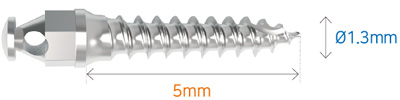

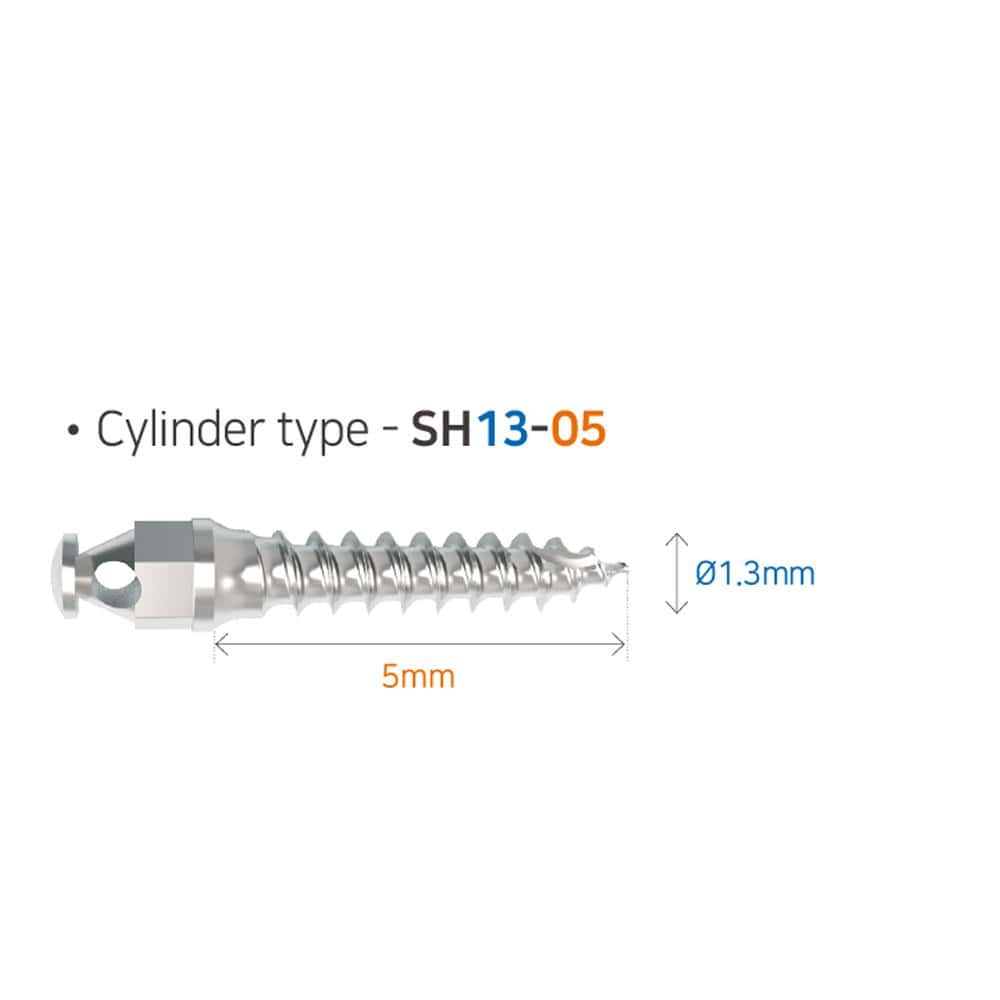

Cylinder type - SH13-05

Cylinder type - SH13-05 5mm / Ø1.3mm

Types of AbsoAnchor Micro Implant

Small Head(SH) Type Example Image

01. Small Head(SH) Type

Recommended Sites

Maxillary and mandibular attached gingiva including the palate.

Recommended Elastomers

Nickel titanium coil spring, elastomeric thread, etc.

Small Head(SH) Type
Series Diameter (Ø) Code
5mm 6mm 7mm 8mm 10mm 12mm
13 Series Ø1.3 SH1312-05 SH1312-06 SH1312-07 SH1312-08 SH1312-10 SH1312-12
14 Series Ø1.4 SH1413-05 SH1413-06 SH1413-07 SH1413-08 SH1413-10 SH1413-12
15 Series Ø1.5 SH1514-05 SH1514-06 SH1514-07 SH1514-08 SH1514-10 SH1514-12
16 Series Ø1.6 SH1615-05 SH1615-06 SH1615-07 SH1615-08 SH1615-10 SH1615-12

* Commonly used sizes

  • 02. No Head(NH)

    No Head(NH)

  • 03. Long Head (LH) Type

    Long Head (LH) Type

  • 04. Circle Head (CH) Type

    04. Circle Head (CH) Type

  • 05. Power Head (PH) Type

    >05. Power Head (PH) Type

  • 06. Fixation Head (FH) Type

    Fixation Head (FH) Type

  • 07. Bracket Head (BH–Right handed screw) Type

    Bracket Head (BH–Right handed screw)

  • 08. Bracket Head (BH–Left handed screw) Type

    Bracket Head (BH–Left handed screw)

  • 09. Hook Head (HH) Type

    Hook Head (HH) Type
clear ceramic orthodontic brackets on teeth

Learn more about our innovative microimplant system. We provide ideal research and support to the orthodontist worldwide.
Please feel free to contact us for further information.
